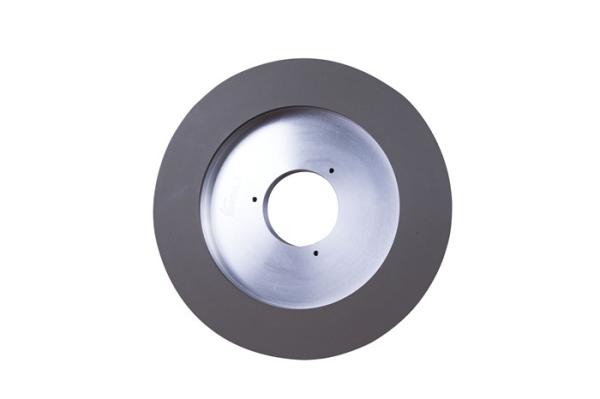

Resin Bond CBN Double Disc Wheels
Resin bond Double disc wheels are widely used for surface roughing and finishing top and bottom of precision parts, such as compressor cylinder, rotors, automobile parts, spring, semi-conductor parts, etc. The resin bond CBN double disc wheels provide perfect performance for a wide range material like HSS, mold steel, bearing steel, tool steel, spring steel, etc. The complex body shape is also available applicable to different machine type. precision double face grinding resin bond grinding wheel.
Specification:
| Vitrified Bond Pellet: |
| Hexagon:30x6mm,24.2x6mm,21x4mm,21x6mm,18x6mm,16x3.5mm |
| Round:23x6mm,20x6mm,18x6mm,15x6mm |
| |
| Type of layout |
| Round-uniform (empty or filled) |
| Evolvent (empty or filled) |
| |
| Shape: 2A2T 6A2 12A2 |
| OD: 100mm-1250mm |
| X:3mm, 4mm, 5mm, 6mm, 8mm, 10mm |
Core material: aluminum, steel
|
Feature:
- High precision (0.001mm)
- High rigidity (0.002mm)
- High efficiency
- Lower temperature in the grinding process
- Simple manipulation
- Good surface finish
- Long dressing interval
- Various bond series
- Flexible delivery date
- Continuous innovation
Application:
Resin DSG Application fields:
Cutting tool industry: carbide insert, cermet insert, PCBN insert
Ceramic industry: aluminum oxide, Saphire
Soft material grinding: Brass, Gold, Aluminium product
Steel material: bearing steel and stainless steel, titanium alloy and the other ductility steels
Used machine: AM, PW, Stahli, Lapmaster Wolters, SKF, KiZi
